SOHO WOOD FIRE

Rate this
product
Write
a review
download owner's manual See the options

Once again, Osburn innovates to offer you the Soho, a small wood stove with an ultra modern design. This stove, which features an exceptional view of the fire, comes with an easy-to-operate door latch system that compliments the clean lines of the appliance. The Soho can be personalized according to your tastes and décor, thanks to its modular side panels available in different finishes and it offers two convenient and safe pedestal choices to store your logs. This stove can be equipped with an optional blower and thermodisc, in addition to being ready for a fresh air connection kit without the need for any special adaptor. The Soho is an ecological heating appliance that will please those seeking efficiency and contemporary design!


  • Model # : OB01522
  • Approved for a mobile home installation
  • Heating environment (m³) : 160 sq. m.
  • Approved for a mobile home installation
  • Color : Metallic black
  • Thickness – Top : 8 mm
  • Optimum efficiency : 60%
  • Average particulate emissions rate : 1.2 g/kg
  • Baffle type : C-Cast or equivalent
  • Model : Pedestal
  • Controlled combustion
  • Adjustable handle
  • Diameter of smoke pipe outlet : 153 mm
  • Glass air-wash system
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless-steel secondary-air system improving gas combustion
Replacement parts
  • Baffle type C-Cast or equivalent
  • Diameter of smoke pipe outlet 153 mm
  • Firebox – dimension (Height) 310 mm
  • Firebox – dimension (Width) 460 mm
  • Firebox – dimension (Depth) 343 mm
  • Overall dimension (Height) 836 mm
  • Overall dimension (Width) 723 mm
  • Overall dimension (Depth) 538 mm
  • Door opening – dimension (Height) 208 mm
  • Door opening - dimension (Width) 413 mm
  • Optimum efficiency 60%
  • Average particulate emissions rate 1.2 g/kg
  • Firebox thickness – Outline 5 mm
  • Thickness – Top 8 mm
  • Warranty Limited lifetime
  • Maximum log length 435 mm
  • Shipping Weight 157 kg
  • Log positioning Loading over width
  • Heating environment (m³) 160 sq. m.
  • Glass surface – dimensions (Width X Height) 400 mm X 184 mm
  • Fuel type Dry cordwood (16" recommended)
  • Door type Single, glass with steel frame
  • Glass type Ceramic glass
  • Firebox nominal volume (m³) 0,049 cu. m
  • Approved for a mobile home installation Yes, with fresh air intake
  • Glass air-wash system Yes
  • Firebox lined with refractory bricks for better heat distribution Yes
  • Model Pedestal
  • Stainless-steel secondary-air system improving gas combustion Yes

Printable Templates

pdf

PDF File

This PDF file allows you to easily manipulate, transfer, print, etc.

Customer reviews

The reviews you are reading come from homeowners who have bought the product and registered their warranty online. Therefore, in order to write a review, you must have purchased the product and you must register your warranty using our Warranty Registration section. Information about your product, such as its serial number, will be requested.

Heating cost calculation

Select your country
What is your current annual heating cost ?
What type of combustible do you currently use ?
Can you specify the unit cost of your actual combustible ?
What is the combustible you wish to compare ?
Can you specify the unit cost of combustible to compare ?
Your annual estimated saving with
* For wood, all calculations are based on a full cord measuring 1,2 m X 1,2 m X 2,4 m (4 ft X 4 ft X 8 ft). In certain regions of Canada, we call a cord what is in fact a third of a cord: 0,4 m X 1,2 m X 2,4 m (16 in X 4 ft X 8 ft). If what you buy is a third of a cord, multiply the price by 3. For the efficiency variable, we assume in our calculations that the stove used is one tested according to the EPA or CSA B415.1 standards.
Terms and conditions

Terms and Conditions

1. This calculator enables you to compare your current heating system and combustible with other heating systems or combustibles. However, we deny any responsibility and offer no guarantee as to the accuracy and integrality of the data supplied.

2. The results obtained from this calculator must only serve as a guide and cannot replace the detailed calculations performed by a specialist. For a detailed evaluation of your heating costs, please consult a professional.

3. By using this calculator, you automatically agree to the conditions stated above.

4. This calculator was carefully programmed. However, some computer errors may occur. If you encounter any error, please do not hesitate to communicate with us at : marketing@sbi-international.com



Minimum clearances to combustibles *
  • Back
  • Sides
  • Corners
  • Top

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

Options

Decorative side panels

AC01371 - BLACK DECORATIVE SIDE PANELS
AC01371
AC01373 - RED ENAMELED DECORATIVE SIDE PANELS
AC01373

Pedestal

AC01368 - TWO-SIDED PEDESTAL AND ASH DRAWER
AC01368

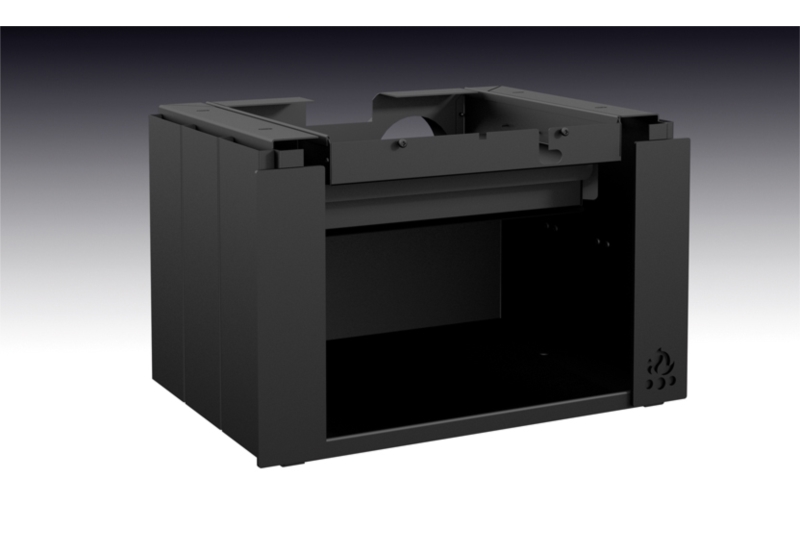

AC01369 - REGULAR PEDESTAL AND ASH DRAWER
AC01369

Accessories

Adhesives, gaskets and insulation
HIGH TEMPERATURE RED SILICONE (300 mL- 10.1 FL.OZ.)

AC02040

HIGH TEMPERATURE RED SILICONE (300 mL- 10.1 FL.OZ.)

A premium quality 100% silicone sealant that stays permanently flexible. Suitable for sealing around oven windows, flues on gas appliances, joints and metal stacks and ductwork. An excellent gasket maker to replace existing cork and felt rubber. Ideal for holding gaskets around stove and fireplace doors. Oxygen sensor safe. Withstands continuous temperatures up to 260°C (500°F) with temperature peak at 316°C (600°F).


HIGH TEMPERATURE CLEAR SILICONE (300 mL - 10.1 FL.OZ.)

AC02045

HIGH TEMPERATURE CLEAR SILICONE (300 mL - 10.1 FL.OZ.)

A premium quality 100% silicone sealant that stays permanently flexible. Suitable for sealing around oven windows, flues on gas appliances, joints and metal stacks and ductwork. An excellent gasket maker to replace existing cork and felt rubber. Ideal for holding gaskets around stove and fireplace doors. Oxygen sensor safe. Withstands continuous temperatures up to 232°C or 450°F.


SILICONE AND 5/8" X 8' BLACK DOOR GASKET KIT (AC-DGKNC)

AC06500

SILICONE AND 5/8" X 8' BLACK DOOR GASKET KIT (AC-DGKNC)

Includes one 8-foot long (2.4 m) by 5/8 inch diameter (16 mm) black gasket and one tube of original high-temp adhesive. Recommended for high efficiency wood stoves and fireplaces.


HIGH TEMPERATURE RED SILICONE (83 mL - 2.8 FL.OZ.)

AC07850

HIGH TEMPERATURE RED SILICONE (83 mL - 2.8 FL.OZ.)

Premium quality 100% silicone adhesive. Withstands continuous temperature up to 260°C (500°F) with temperature peak at 316°C (600°F).


Paint
METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL

AC05959

METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL


Maintenance products
KEVLAR THREAD WOOD STOVE 14'' AND FIREPLACE GLOVES

AC07820

KEVLAR THREAD WOOD STOVE 14'' AND FIREPLACE GLOVES

Recommended for a clean and safe use of any type of wood-burning appliance. Fire-resistant kevlar sewings.


WOOD APPLIANCE GLASS CLEANER (500 mL - 16.9 FL.OZ.)

AC07825

WOOD APPLIANCE GLASS CLEANER (500 mL - 16.9 FL.OZ.)

Recommended for cleaning the glass of any type of wood-burning appliance.
