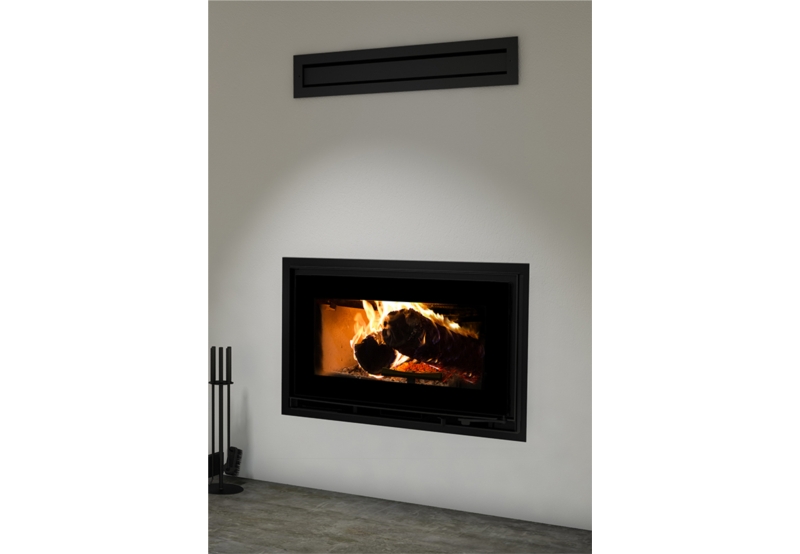

STRATFORD CF ZERO CLEARANCE WOOD INSERT FIRE

Rate this
product
Write
a review

With its straight lines, simplistic shape and neutral color, the Stratford CF brings a gust of modernism into your home. It harmonizes both functionality and comfort perfectly. Moreover, with its extra large clean face glass, the Stratford CF offers a view on the fire that is unmatched in the industry. The modern style hot air gravity distribution kit, standard with the Stratford CF, will help you harness all the power from this incredible fireplace while keeping in mind the contemporary lines of your décor. The most serious of users will also want to install the forced air kit which will allow for better and more efficient heat transfers to a room further from the zero clearance wood inbuilt.

The installation of a fresh air intake is mandatory on the Stratford CF. The fresh air intake adaptor is included with the zero clearance wood inbuilt. However, the outside air inlet cap; the 2 adjustable straps and the 4” insulated flexible pipe must be bought separately.


  • Model # : OB04006
  • Heating environment (m³) : 240 sq. m
  • Color : Metallic black
  • Thickness – Top : 3 mm
  • Optimum efficiency : 69%
  • Average particulate emissions rate : 0,9 g/kg
  • Baffle type : Right or left
  • Controlled combustion
  • Diameter of smoke pipe outlet : 150 mm
  • Glass air-wash system
  • Moulded refractory bricks
  • Stainless-steel secondary-air system improving gas combustion
  • Cast iron andirons
  • Baffle type C-Cast

  • Diameter of smoke pipe outlet 150 mm

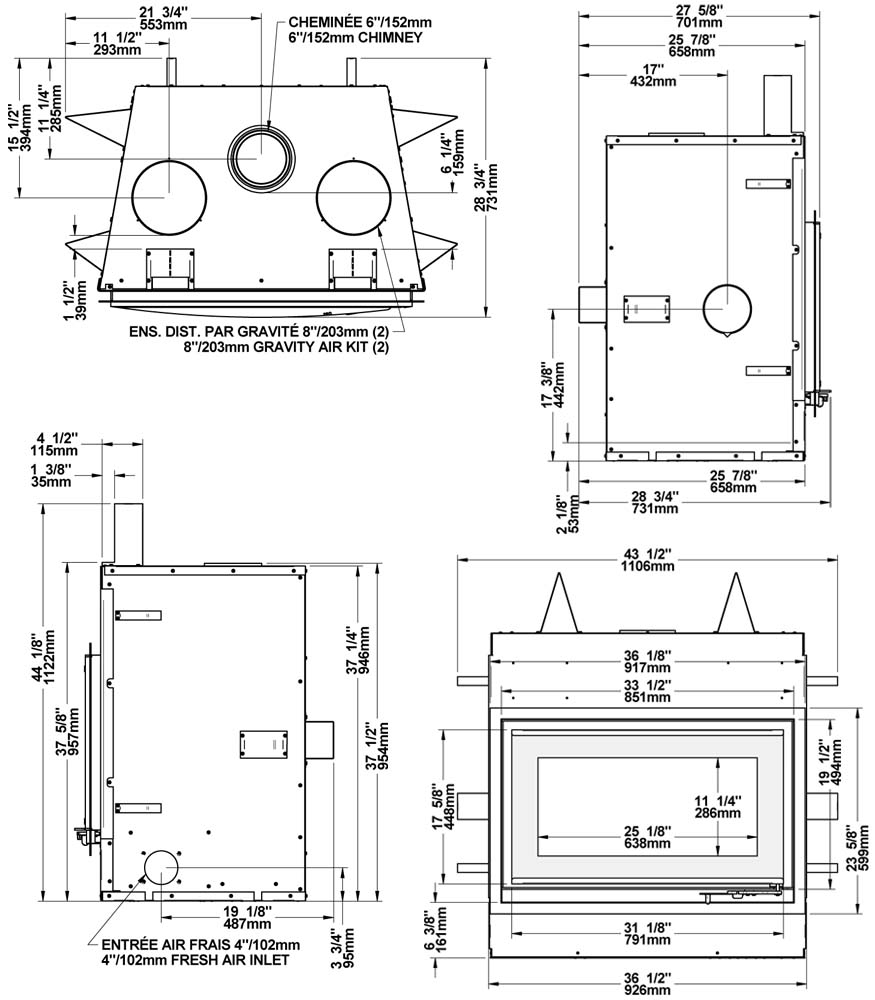

  • Firebox – dimension (Height) 308 mm

  • Firebox – dimension (Width) 515 mm

  • Firebox – dimension (Depth) 329 mm

  • Overall dimension (Height) 1106 mm

  • Overall dimension (Width) 1120 mm

  • Overall dimension (Depth) 731 mm

  • Optimum efficiency 69%

  • Average particulate emissions rate 0,9 g/kg

  • Thickness – Top 3 mm

  • Maximum log length 450 mm

  • Minimum fireplace opening (height) 1135 mm

  • Minimum fireplace opening (Width) 1120 mm

  • Minimum fireplace opening (depth) 658 mm

  • Shipping Weight 195 kg

  • Log positioning Over depth

  • Heating environment (m³) 240 sq. m

  • Glass surface – dimensions (Width X Height) 638 mm X 286 mm

  • Fuel type Dry cordwood

  • Door type Single, glass with steel frame

  • Glass type Ceramic glass

  • Firebox nominal volume (m³) 0.071 cu. m

  • Cast iron andirons Yes

  • Glass air-wash system Yes

  • Moulded refractory bricks Yes

  • Stainless-steel secondary-air system improving gas combustion Yes

Printable Templates

pdf

PDF File

This PDF file allows you to easily manipulate, transfer, print, etc.

Customer reviews

The reviews you are reading come from homeowners who have bought the product and registered their warranty online. Therefore, in order to write a review, you must have purchased the product and you must register your warranty using our Warranty Registration section. Information about your product, such as its serial number, will be requested.

Heating cost calculation

Select your country
What is your current annual heating cost ?
What type of combustible do you currently use ?
Can you specify the unit cost of your actual combustible ?
What is the combustible you wish to compare ?
Can you specify the unit cost of combustible to compare ?
Your annual estimated saving with
* For wood, all calculations are based on a full cord measuring 1,2 m X 1,2 m X 2,4 m (4 ft X 4 ft X 8 ft). In certain regions of Canada, we call a cord what is in fact a third of a cord: 0,4 m X 1,2 m X 2,4 m (16 in X 4 ft X 8 ft). If what you buy is a third of a cord, multiply the price by 3. For the efficiency variable, we assume in our calculations that the stove used is one tested according to the EPA or CSA B415.1 standards.
Terms and conditions

Terms and Conditions

1. This calculator enables you to compare your current heating system and combustible with other heating systems or combustibles. However, we deny any responsibility and offer no guarantee as to the accuracy and integrality of the data supplied.

2. The results obtained from this calculator must only serve as a guide and cannot replace the detailed calculations performed by a specialist. For a detailed evaluation of your heating costs, please consult a professional.

3. By using this calculator, you automatically agree to the conditions stated above.

4. This calculator was carefully programmed. However, some computer errors may occur. If you encounter any error, please do not hesitate to communicate with us at : marketing@sbi-international.com



Minimum clearances to combustibles *
ManCoCm
ManSuCm
PlanCAm
TabFoCm
ConNcHCm
ConNcCCm

Options

Heat management system

AC01339 - FORCED AIR DISTRIBUTION KIT
AC01339

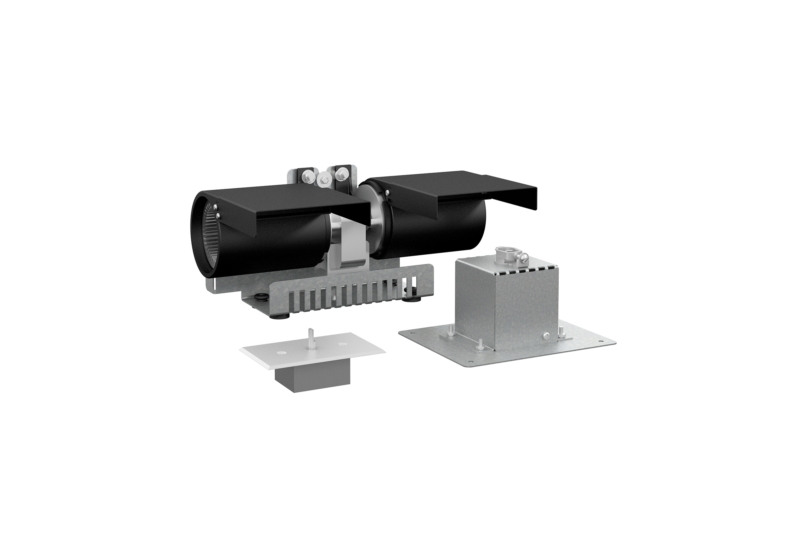

AC01387 - 240V BLOWER FOR HOT AIR GRAVITY DISTRIBUTION KIT - MODERN STYLE
AC01387 English US

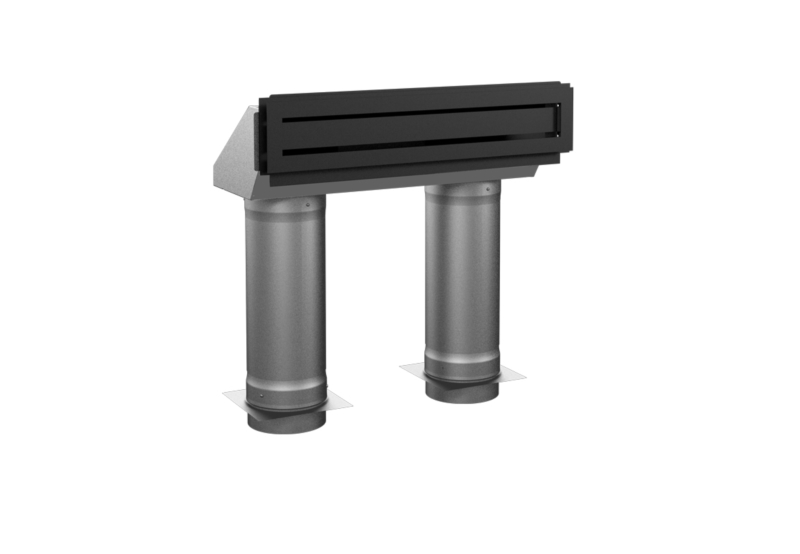

AC01389 - HOT AIR GRAVITY DISTRIBUTION KIT – MODERN WITH ADJUSTABLE PIPES
AC01389

Finishing Trim

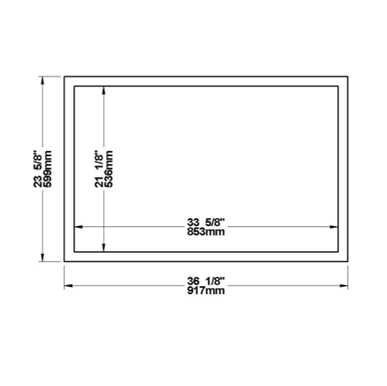

VA10FL02 - METALLIC BLACK FINISHING TRIM
VA10FL02

Fire screens

AC01364 - FIRESCREEN DOOR
AC01364 English US
